NeXT Retro-Reimagined Display

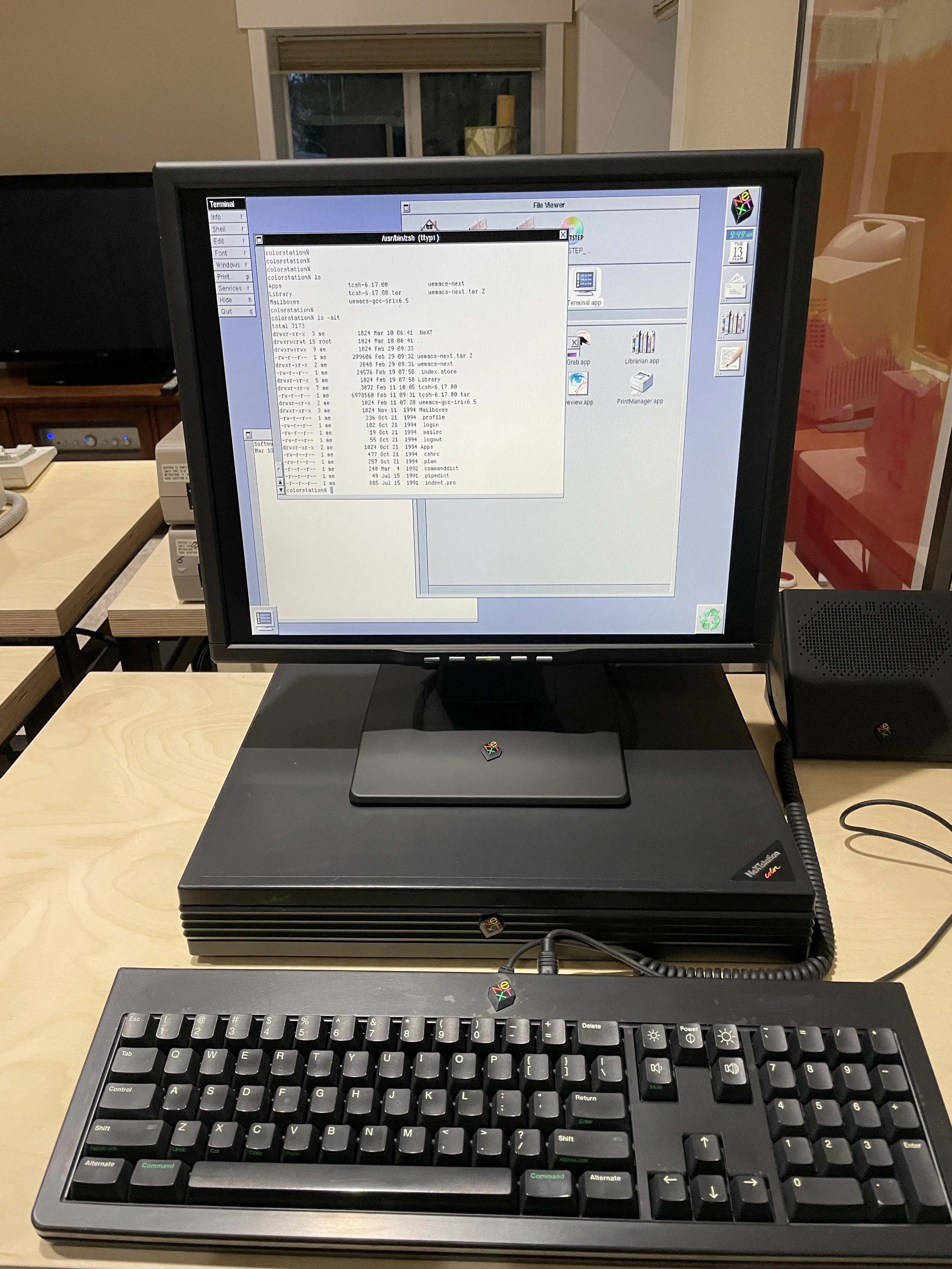

The finished NeXT-style monitor in use, displaying NEXTSTEP atop a NeXTstation Color with NeXT keyboard

This project describes the transformation of a Sun LCD monitor into a retro-styled NeXT display that never actually existed in the original NeXT product line.

The Problem

When restoring a NeXTstation Color, finding an appropriate period display can be challenging. Original NeXT monitors are rare and expensive. Using a modern LCD works functionally but detracts from the vintage computing experience. Even pairing it with an authentic Sun monitor didn’t quite feel right for showcasing the NeXTstation.

The Solution

Since Sun LCD monitors from the 2000s era remain relatively common and lack significant collector value, I decided to transform one into what a NeXT-branded LCD monitor might have looked like if NeXT had continued producing hardware.

Donor Equipment

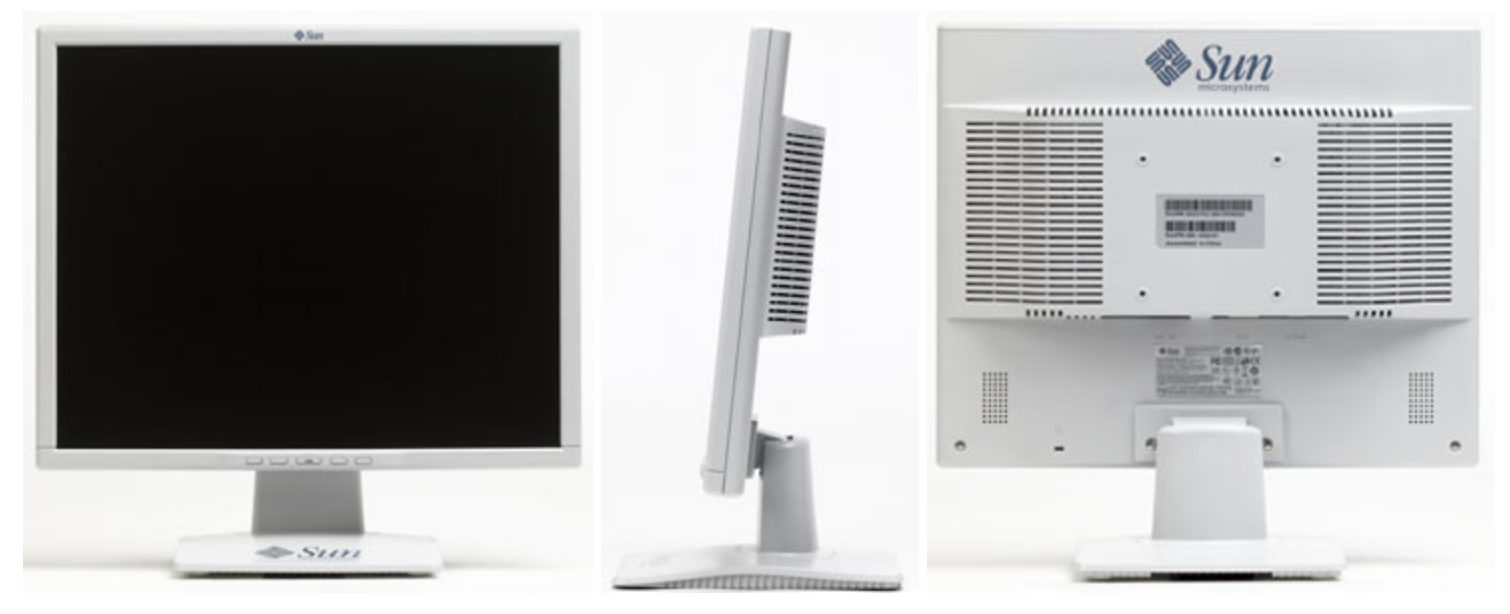

The donor Sun 365-1432-01 LCD monitor in original silver/white finish, three product views

The project used a Sun LCD Monitor Model 365-1432-01, which offers 1280x1024 resolution — well suited for the NeXTstation Color’s display capabilities.

Restoration Process

Disassembly

The monitor was completely disassembled, separating the plastic housing components from the LCD panel and electronics.

Priming

All plastic components received a base coat of Rust-oleum Self-Etching Primer. This primer is essential for adhesion to the smooth plastic surfaces and prevents the paint from peeling over time.

Painting

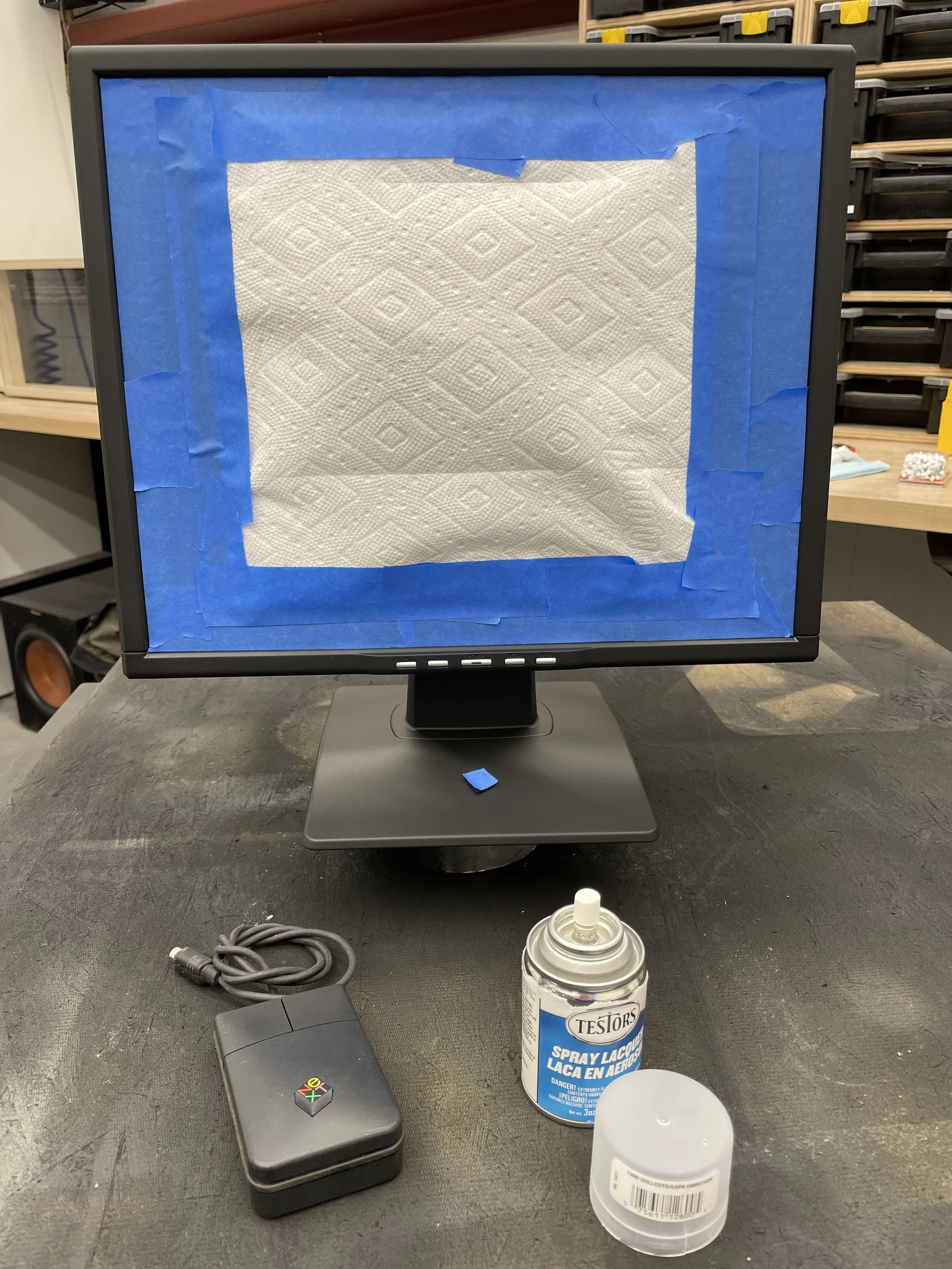

Paint-prep masking with paper towel taped over the screen, the donor NeXT mouse, and a can of Testor’s Dull Coat staged below

The final color coat used Rust-oleum Satin Black, chosen to match the signature NeXT aesthetic. The satin finish provides a subtle sheen similar to original NeXT hardware.

Finishing

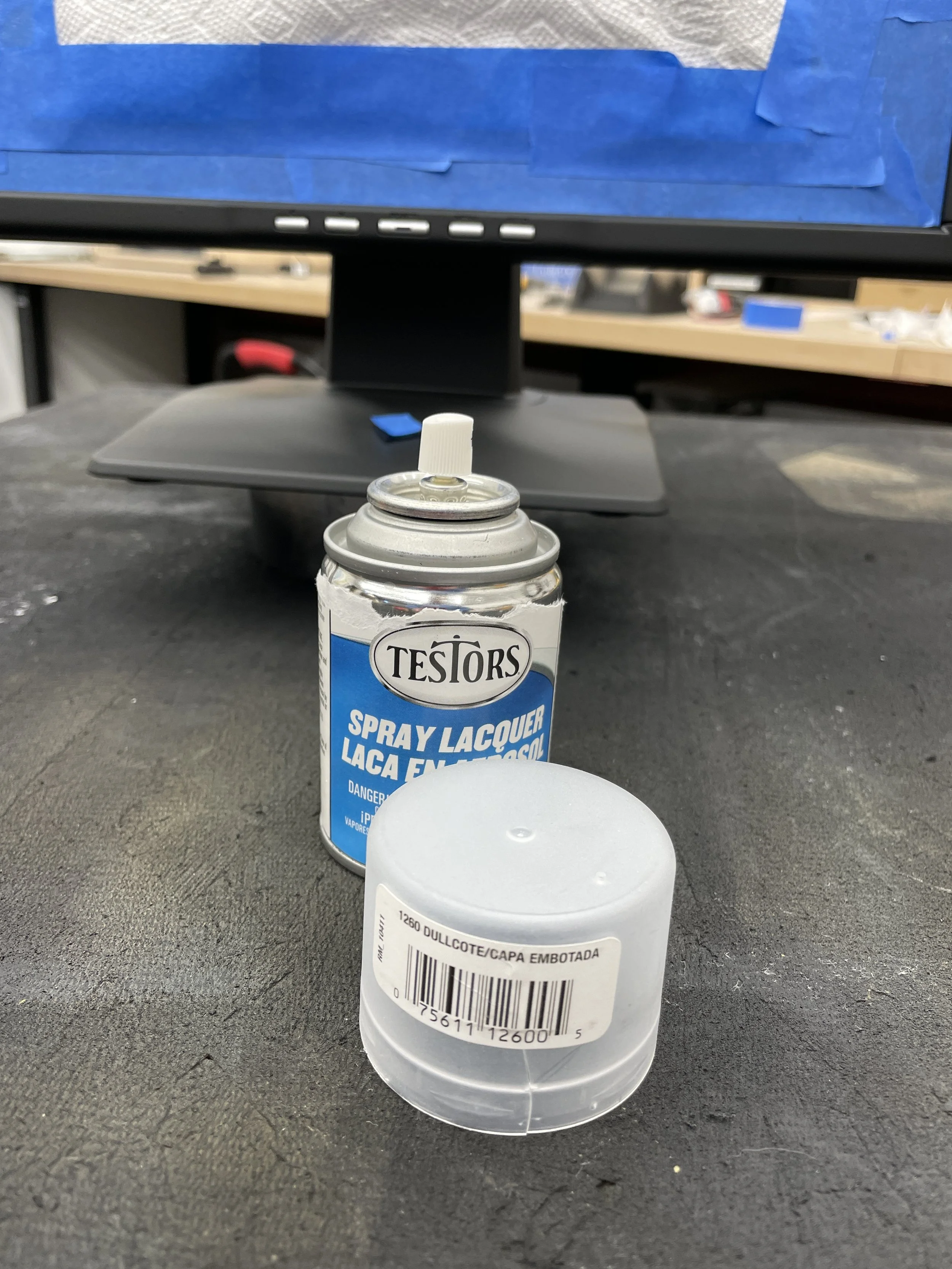

Testor’s Spray Lacquer Dull Coat — the final matte topcoat that knocks down the gloss to authentic NeXT-finish levels

To reduce the glossiness and achieve the proper matte look of authentic NeXT equipment, all painted surfaces received a final application of Testor’s Dull Coat.

The Final Touch

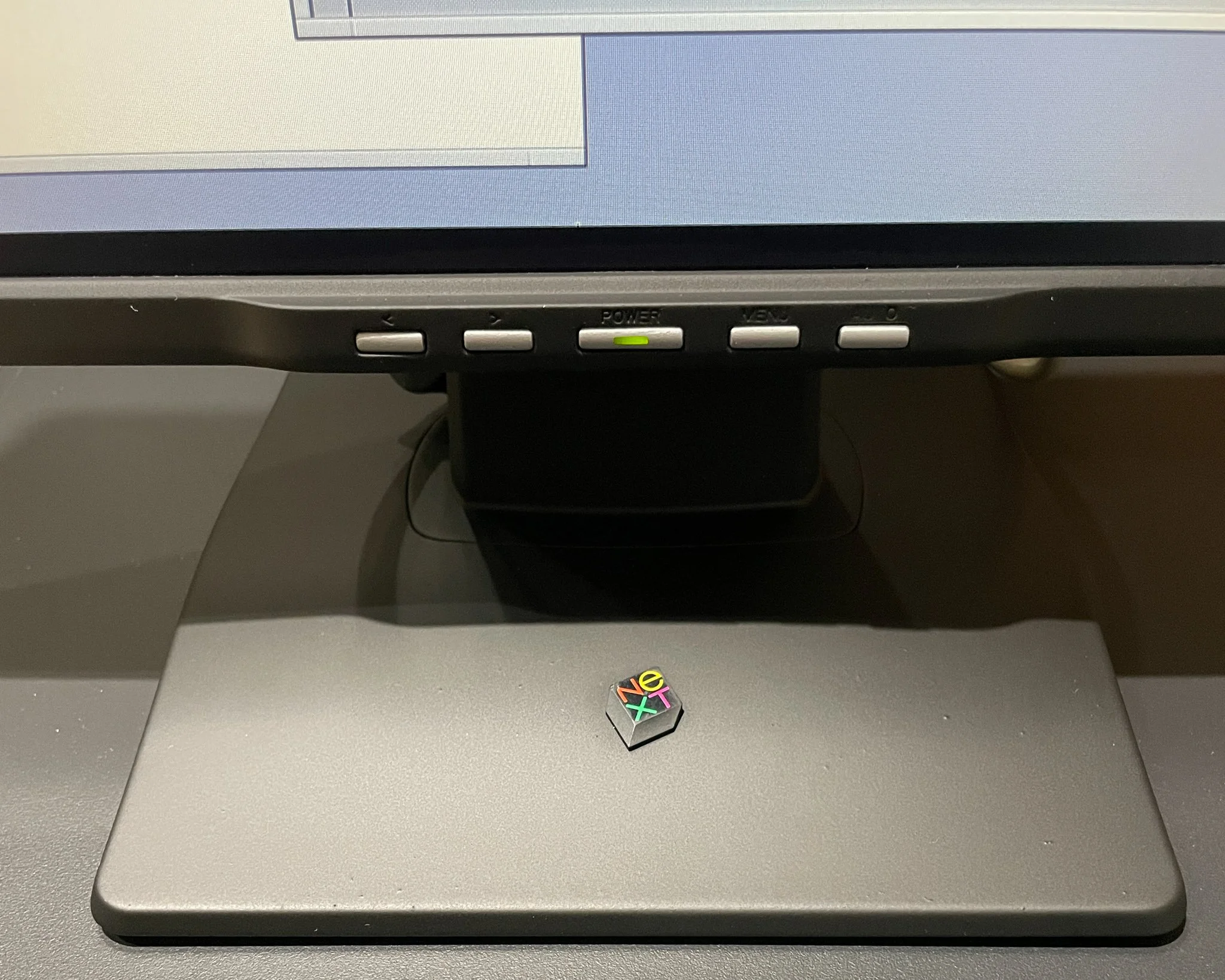

Close-up of the salvaged NeXT logo cube positioned on the painted monitor stand, with the front control buttons visible above

To complete the illusion of an original NeXT product, I salvaged the NeXT logo from a damaged NeXT mouse and positioned it on the monitor stand. This small detail transforms the modified Sun monitor into a convincing “NeXT display” that complements the restored NeXTstation Color perfectly.

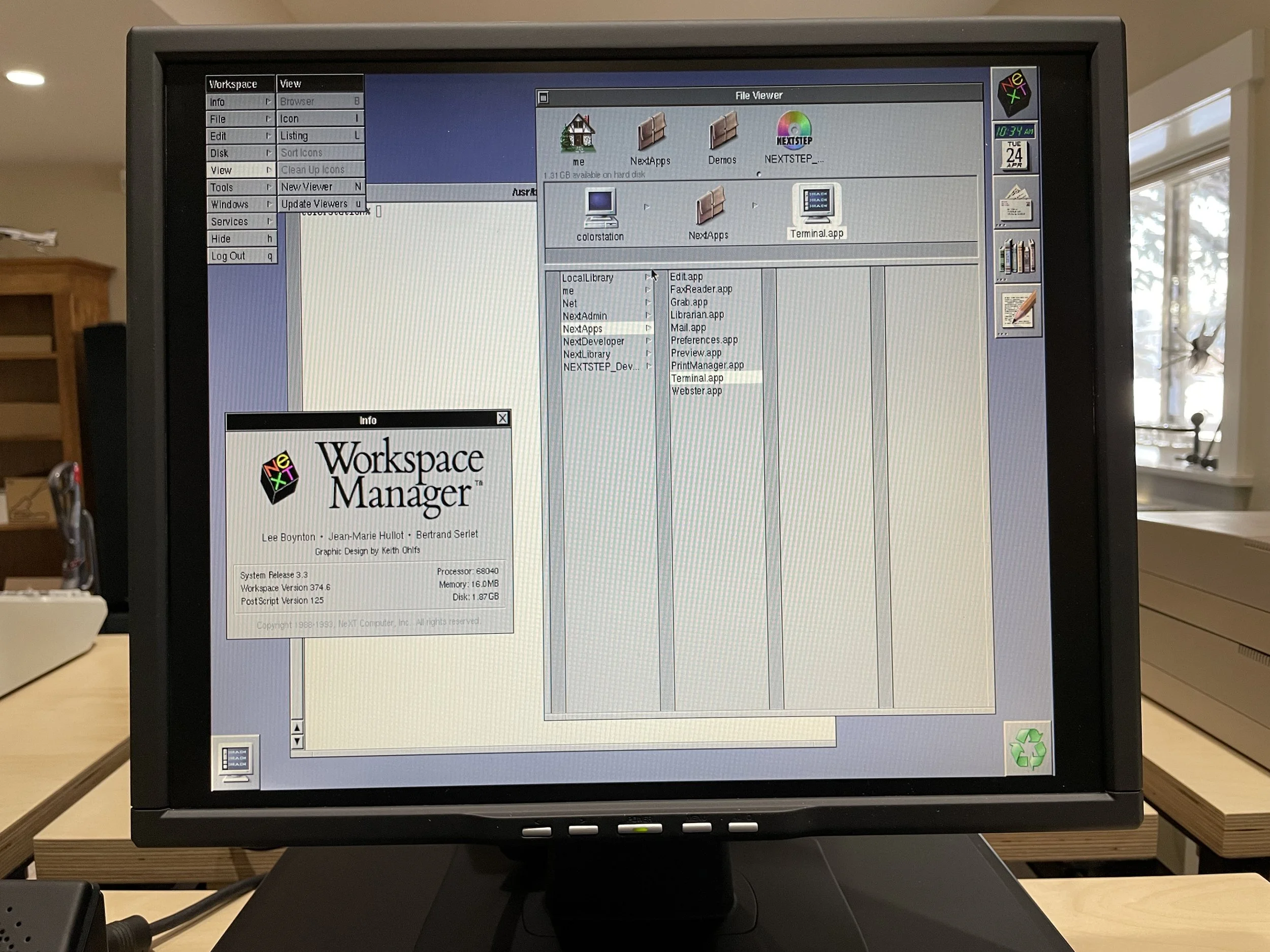

The finished monitor running NEXTSTEP Workspace Manager with file-viewer windows open

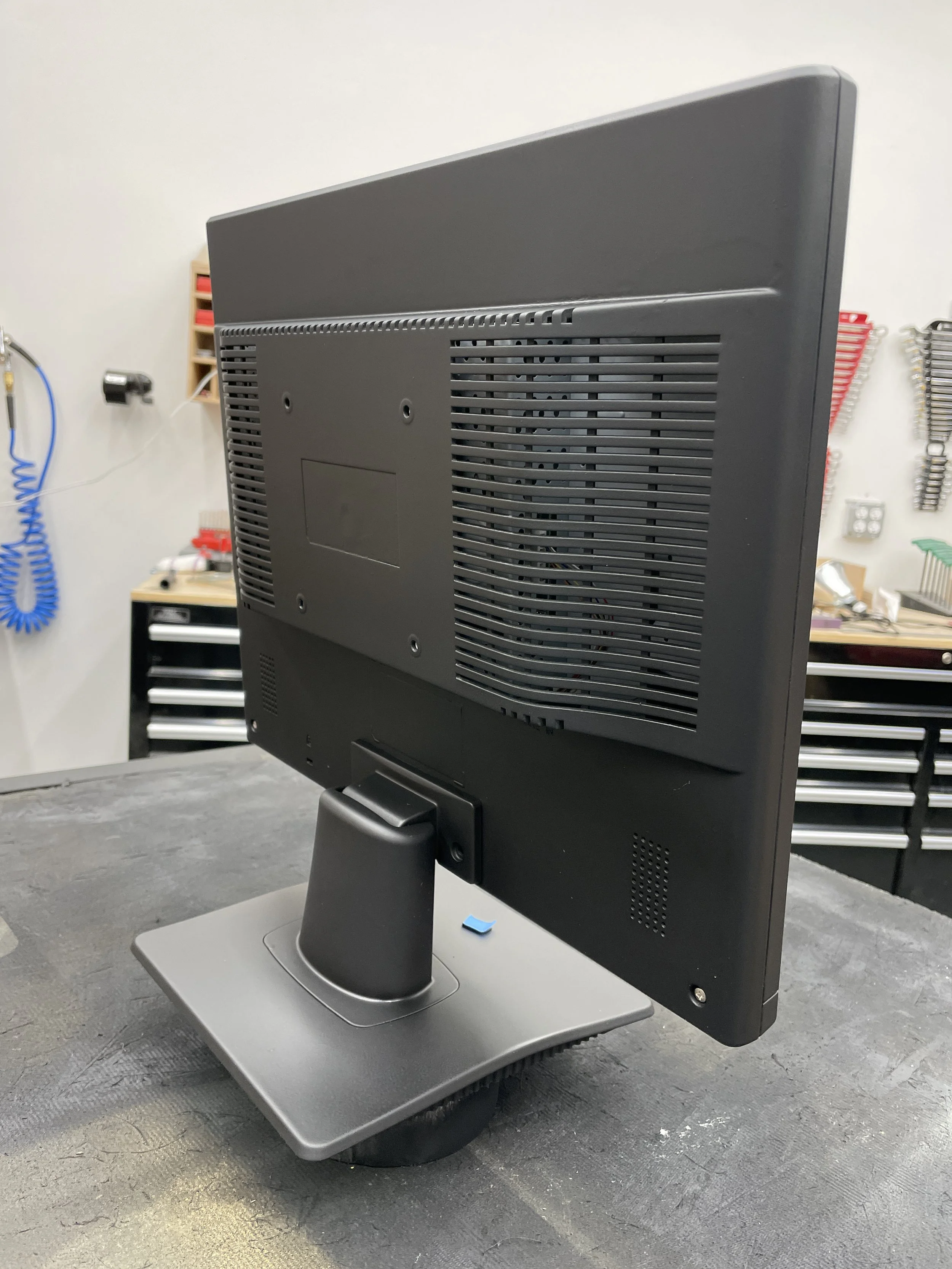

Side/back view of the finished monitor showing the satin black finish on the molded vents and stand

Notes

This type of modification is acceptable because these particular Sun monitors remain readily available and inexpensive. I would never modify rare or historically significant equipment in this way. The goal is to enhance the vintage computing experience while preserving truly irreplaceable hardware for future generations.
